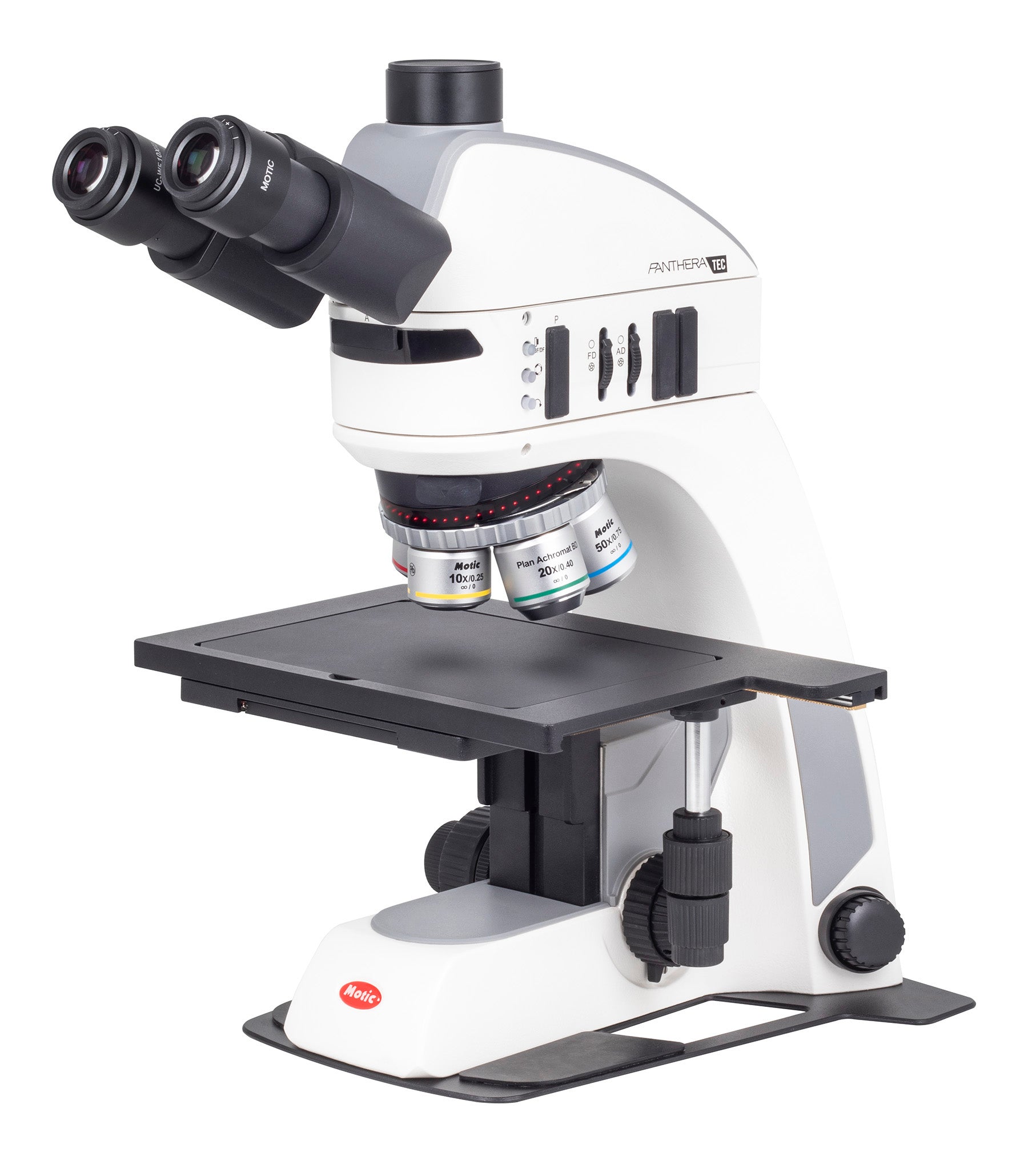

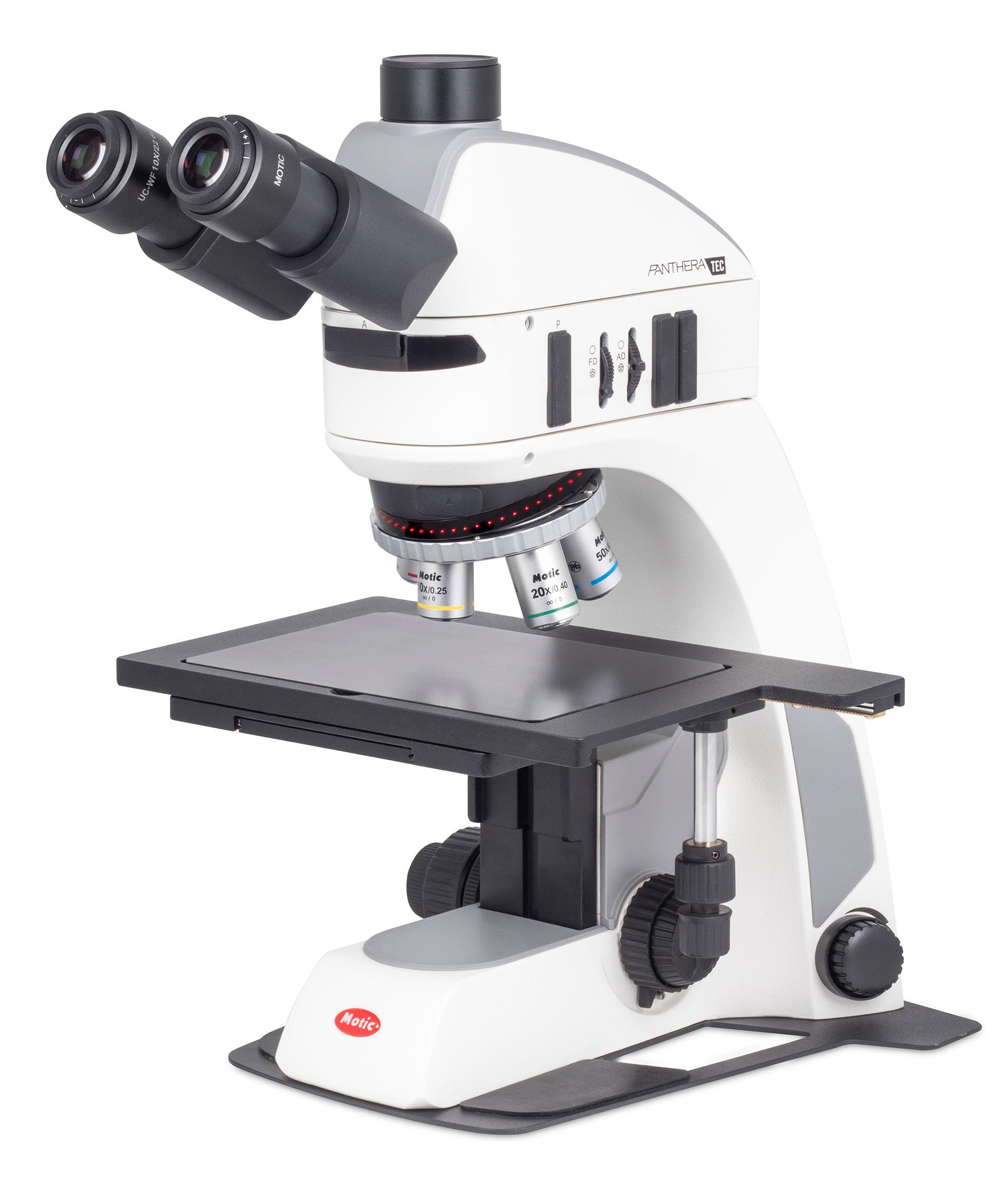

Panthera TEC MAT - BF (6"x4")

$4,934


The Panthera TEC offers high value for the inspection of semiconductors and and various other materials, especially in industrial quality control and technical education. Brightfield, Darkfield and Cross-Polarization contrast are combined with a new, unique-to-Motic segmental illumination that all contribute to the versatility of this model. This concept allows an oblique incident illumination, perfect for the detection of scratches or other defects on flat and reflecting surfaces without a need to move the sample. BD  models  feature LD Plan BD objectives  with  a  superb  imaging performance, mounted on a 5-fold nosepiece.

Panthera TEC MAT - Powerful Solutions for Material Sciences

The Panthera TEC series of Industrial microscopes is the missing link in the Panthera family: Incident light microscopes for material sciences, ready to handle semiconductors, LCD panels and wafers with a clever Brightfield/Darkfield illumination concept. To extend the application fields for compound materials, microscope models with additional Transmitted light by integrated LED illumination can be chosen.

  • Smart Darkfield with 5 Segment illumination mode
  • New LD Plan Achromatic and S-Apochromatic BD objectives & 22mm FOV eyepieces
  • Pure incident or incident/ transmitted microscope stands available
  • LED color temperature interchangeable
  • Motic LightTracer: Coded nosepiece & Digital light intensity knob
Model Panthera TEC MAT BF Panthera TEC MAT BF-T Panthera TEC MAT BD Panthera TEC MAT BD-T
Optical system Colour Corrected Infinity Optical System (CCIS®) Colour Corrected Infinity Optical System (CCIS®) Colour Corrected Infinity Optical System (CCIS®) Colour Corrected Infinity Optical System (CCIS®)

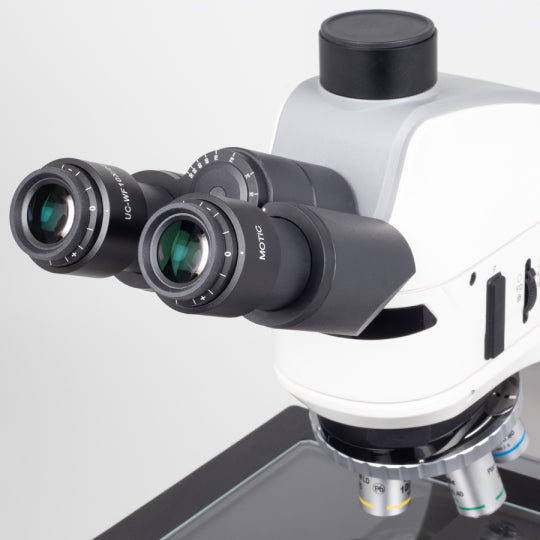

Observation tube Trinocular head, Siedentopf type, 360º swiveling Trinocular head, Siedentopf type, 360º swiveling Trinocular head, Siedentopf type, 360º swiveling Trinocular head, Siedentopf type, 360º swiveling
Inclination 25º inclined, 360º swivelling 25º inclined, 360º swivelling 25º inclined, 360º swivelling 25º inclined, 360º swivelling
Trinocular light split Fixed 50:50 Fixed 50:50 Fixed 50:50 Fixed 50:50
Interpupillary distance 48-75mm 48-75mm 48-75mm 48-75mm
Diopter adjustment On both eyepieces, +/- 4 diopter On both eyepieces, +/- 4 diopter On both eyepieces, +/- 4 diopter On both eyepieces, +/- 4 diopter
Eyepieces Widefield UC-WF10X/22mm with diopter adjustment Widefield UC-WF10X/22mm with diopter adjustment Widefield UC-WF10X/22mm with diopter adjustment Widefield UC-WF10X/22mm with diopter adjustment

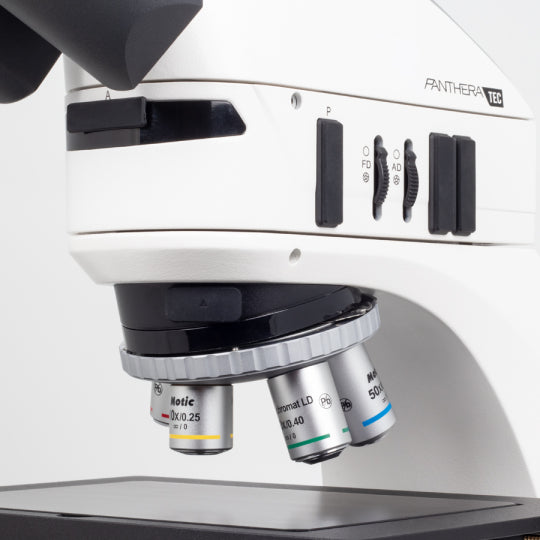

Intermediate body Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer
Nosepiece Reversed quintuple, coded Reversed quintuple, coded Reversed quintuple, coded Reversed quintuple, coded
Objective classification CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN CCIS® BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield) CCIS® BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield)

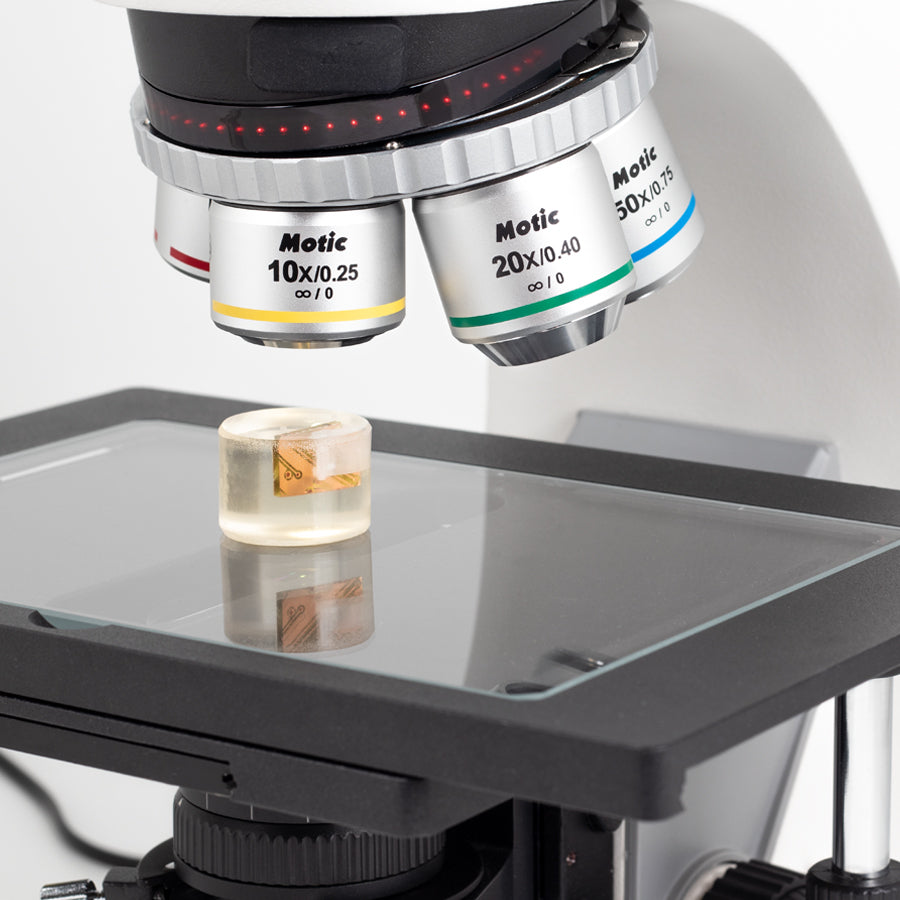

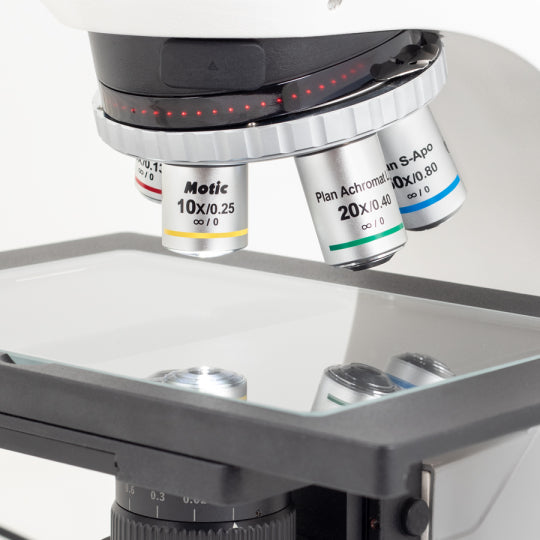

Objectives 5X/0.13 (WD 20.3mm),
10X/0.25 (WD 17.5mm),
20X/0.40 (WD 8.1mm),
S-Apo 50X/0.80 (WD 1mm)
5X/0.13 (WD 20.3mm),
10X/0.25 (WD 17.5mm),
20X/0.40 (WD 8.1mm),
S-Apo 50X/0.80 (WD 1mm)
5X/0.13 (WD 17.3mm),
10X/0.25 (WD 16.3mm),
20X/0.40 (WD 7.3mm),
S-Apo 50X/0.80 (WD 1mm)
5X/0.13 (WD 17.3mm),
10X/0.25 (WD 16.3mm),
20X/0.40 (WD 7.3mm),
S-Apo 50X/0.80 (WD 1mm),
S-Apo 100X/0.90 (WD 0.5mm) (Optional)
Objective mounting thread W 4/5"x1/36" (RMS standard) W 4/5"x1/36" (RMS standard) M32 M32
Stand type Upright Upright Upright Upright
Stage Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate
Stage size 300x180mm 300x180mm 300x180mm 300x180mm
Travel range X&Y 150x100mm (6"x4") 150x100mm (6"x4") 150x100mm (6"x4") 150x100mm (6"x4")

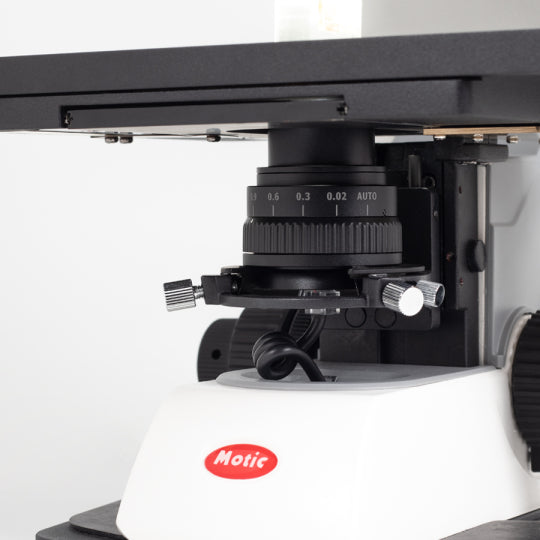

Condenser - LED condenser - LED condenser
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 2µm 2µm 2µm 2µm
Focusing stroke 25mm 25mm 25mm 25mm
Upper limit stop Upper limit stop preset but adjustable Upper limit stop preset but adjustable Upper limit stop preset but adjustable Upper limit stop preset but adjustable
Incident illumination LED 3W with integrated field and aperture diaphragms LED 3W with integrated field and aperture diaphragms LED 3W smart segmental ringlight with integrated field and aperture diaphragms LED 3W smart segmental ringlight with integrated field and aperture diaphragms
Transmitted illumination - 0.06Wx39 LEDs - 0.06Wx39 LEDs
Illumination interchangeability LED color temperature interchangeability LED color temperature interchangeability LED color temperature interchangeability LED color temperature interchangeability
Illumination features Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
Transformer Internal Internal Internal Internal
Power supply 110-240V (CE) 110-240V (CE) 110-240V (CE) 110-240V (CE)

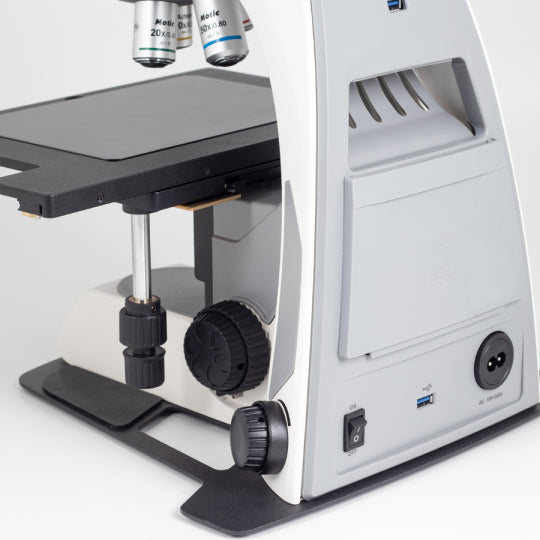

Other features USB 2.0 for external camera power USB 2.0 for external camera power USB 2.0 for external camera power USB 2.0 for external camera power
Accessories included Dust cover, power cord, Allen key, screws for metal extension support Dust cover, power cord, Allen key, screws for metal extension support Dust cover, power cord, Allen key, screws for metal extension support Dust cover, power cord, Allen key, screws for metal extension support
Dimensions LxWxH 410x300x450mm 410x300x450mm 410x300x450mm 410x300x450mm
Weight Net 10.4kg 10.6kg 10.5kg 10.7kg
Standard contrast technique Brightfield Brightfield Brightfield, Darkfield Brightfield, Darkfield
Optional contrast technique Polarization Polarization Polarization Polarization

At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.

All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.

Descriptions

Panthera TEC MAT - Powerful Solutions for Material Sciences

The Panthera TEC series of Industrial microscopes is the missing link in the Panthera family: Incident light microscopes for material sciences, ready to handle semiconductors, LCD panels and wafers with a clever Brightfield/Darkfield illumination concept. To extend the application fields for compound materials, microscope models with additional Transmitted light by integrated LED illumination can be chosen.

  • Smart Darkfield with 5 Segment illumination mode
  • New LD Plan Achromatic and S-Apochromatic BD objectives & 22mm FOV eyepieces
  • Pure incident or incident/ transmitted microscope stands available
  • LED color temperature interchangeable
  • Motic LightTracer: Coded nosepiece & Digital light intensity knob

Specifications

Model Panthera TEC MAT BF Panthera TEC MAT BF-T Panthera TEC MAT BD Panthera TEC MAT BD-T
Optical system Colour Corrected Infinity Optical System (CCIS®) Colour Corrected Infinity Optical System (CCIS®) Colour Corrected Infinity Optical System (CCIS®) Colour Corrected Infinity Optical System (CCIS®)
Observation tube Trinocular head, Siedentopf type, 360º swiveling Trinocular head, Siedentopf type, 360º swiveling Trinocular head, Siedentopf type, 360º swiveling Trinocular head, Siedentopf type, 360º swiveling
Inclination 25º inclined, 360º swivelling 25º inclined, 360º swivelling 25º inclined, 360º swivelling 25º inclined, 360º swivelling
Trinocular light split Fixed 50:50 Fixed 50:50 Fixed 50:50 Fixed 50:50
Interpupillary distance 48-75mm 48-75mm 48-75mm 48-75mm
Diopter adjustment On both eyepieces, +/- 4 diopter On both eyepieces, +/- 4 diopter On both eyepieces, +/- 4 diopter On both eyepieces, +/- 4 diopter
Eyepieces Widefield UC-WF10X/22mm with diopter adjustment Widefield UC-WF10X/22mm with diopter adjustment Widefield UC-WF10X/22mm with diopter adjustment Widefield UC-WF10X/22mm with diopter adjustment
Intermediate body Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer Epi-illuminator LED with integrated field and aperture diaphragms and slots for analyzer and polarizer
Nosepiece Reversed quintuple, coded Reversed quintuple, coded Reversed quintuple, coded Reversed quintuple, coded
Objective classification CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN CCIS® LD Plan Achromatic & S-Apo (Pb free), DIN CCIS® BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield) CCIS® BD Plan Achromatic & S-Apo (Pb free), DIN (for Brightfield and Darkfield)
Objectives 5X/0.13 (WD 20.3mm),
10X/0.25 (WD 17.5mm),
20X/0.40 (WD 8.1mm),
S-Apo 50X/0.80 (WD 1mm)
5X/0.13 (WD 20.3mm),
10X/0.25 (WD 17.5mm),
20X/0.40 (WD 8.1mm),
S-Apo 50X/0.80 (WD 1mm)
5X/0.13 (WD 17.3mm),
10X/0.25 (WD 16.3mm),
20X/0.40 (WD 7.3mm),
S-Apo 50X/0.80 (WD 1mm)
5X/0.13 (WD 17.3mm),
10X/0.25 (WD 16.3mm),
20X/0.40 (WD 7.3mm),
S-Apo 50X/0.80 (WD 1mm),
S-Apo 100X/0.90 (WD 0.5mm) (Optional)
Objective mounting thread W 4/5"x1/36" (RMS standard) W 4/5"x1/36" (RMS standard) M32 M32
Stand type Upright Upright Upright Upright
Stage Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate Mechanical stage, hard coated with built-in low position coaxial stage control and glass plate
Stage size 300x180mm 300x180mm 300x180mm 300x180mm
Travel range X&Y 150x100mm (6"x4") 150x100mm (6"x4") 150x100mm (6"x4") 150x100mm (6"x4")
Condenser - LED condenser - LED condenser
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment
Fine focus precision 2µm 2µm 2µm 2µm
Focusing stroke 25mm 25mm 25mm 25mm
Upper limit stop Upper limit stop preset but adjustable Upper limit stop preset but adjustable Upper limit stop preset but adjustable Upper limit stop preset but adjustable
Incident illumination LED 3W with integrated field and aperture diaphragms LED 3W with integrated field and aperture diaphragms LED 3W smart segmental ringlight with integrated field and aperture diaphragms LED 3W smart segmental ringlight with integrated field and aperture diaphragms
Transmitted illumination - 0.06Wx39 LEDs - 0.06Wx39 LEDs
Illumination interchangeability LED color temperature interchangeability LED color temperature interchangeability LED color temperature interchangeability LED color temperature interchangeability
Illumination features Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicator
Transformer Internal Internal Internal Internal
Power supply 110-240V (CE) 110-240V (CE) 110-240V (CE) 110-240V (CE)
Other features USB 2.0 for external camera power USB 2.0 for external camera power USB 2.0 for external camera power USB 2.0 for external camera power
Accessories included Dust cover, power cord, Allen key, screws for metal extension support Dust cover, power cord, Allen key, screws for metal extension support Dust cover, power cord, Allen key, screws for metal extension support Dust cover, power cord, Allen key, screws for metal extension support
Dimensions LxWxH 410x300x450mm 410x300x450mm 410x300x450mm 410x300x450mm
Weight Net 10.4kg 10.6kg 10.5kg 10.7kg
Standard contrast technique Brightfield Brightfield Brightfield, Darkfield Brightfield, Darkfield
Optional contrast technique Polarization Polarization Polarization Polarization
