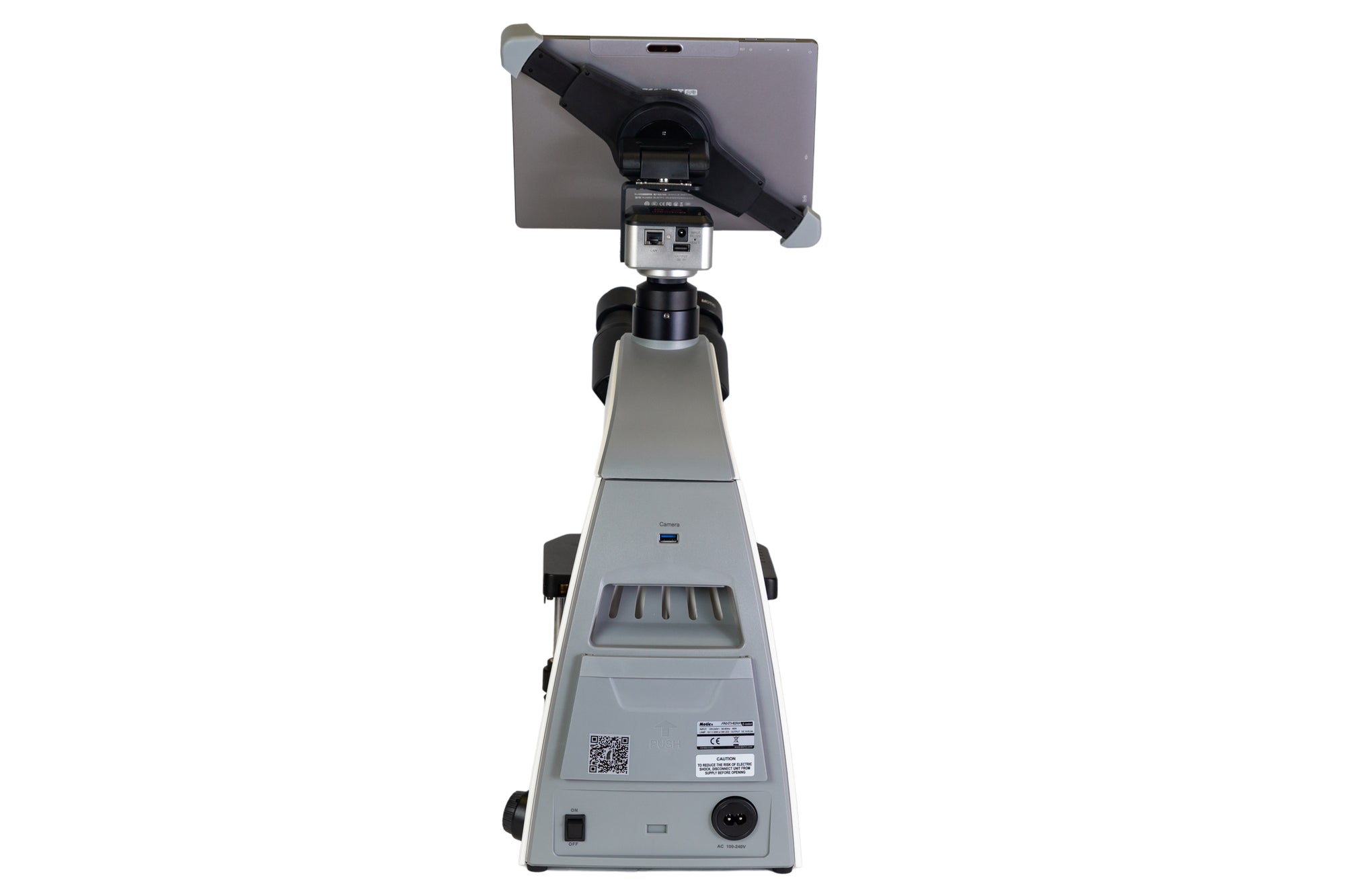

Panthera C2 (Trinocular) + Moticam BTI10 Bundle
$3,611
This digital camera bundle comes with:
- Panthera C2 Trinocular
- Moticam BTI10
- Compatible C-mount adapter
If it is about stained sections with cover glass protection, about native smears, fine needle biopsies, blood smears which wanted to be treated with or without cover glass: Panthera C2 with its selection of specified optics is your solution. The new Ultra Contrast (UC) objectives with additional glass elements to reach a 22mm Field of View, working perfectly together with neutral eyepieces (thanks to CCIS© a fully corrected intermediate image for digital access is granted) guarantee best performance in terms of color fidelity and contrast. Microscope hardware, illumination, handling: Simply convincing.
- Panthera C2 Specifications
- Moticam BTI10 Specifications
- Downloads
- Videos
- Warranty
- Return Policy
- Reviews
| Model | Panthera C2 Trinocular |
| Optical system | Color Corrected Infinity Optical System (CCIS®) |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Inclination | 25° inclined, 360° swiveling |
| Trinocular light split | Fixed 50:50 |
| Interpupillary distance | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield UC-WF10X/20mm with diopter adjustment |
| Nosepiece | Reversed quintuple, coded |
| Objective classification | CCIS® UC Plan Achromatic (Pb free) |
| Objectives | 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size | 185x145mm |
| Travel range X&Y | 75x50mm |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2μm |
| Focusing stroke | 25mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator with fixing cap |
| Transmitted illumination | Koehler LED 3W & Quartz halogen 6V/30W with intensity control |
| Illumination interchangeability | Halogen/LED and LED color temperature interchangeability |
| Illumination features | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator |
| Transformer | Internal |
| Power supply | 110-240V (CE) |
| Other features | USB 2.0 for external camera power |
| Accessories included | Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module |
| Dimensions LxWxH | 282x210x396mm |
| Net weight | 8.4kg |
| Model | Moticam BTI10 |
|---|---|
| Camera Specifications | |
| Sensor Type | CMOS |
| Sensor Size | 1/3" |
| Imaging Area | 5.44x3.07mm |
| Capture Resolution Info | 4MP (2592x1520 pixels) |
| Live display mode through Wi-Fi | 1280x720, 1920x1080 pixels (Full HD) |
| Live display mode through Ethernet | 1280x720, 1920x1080 pixels (Full HD) |
| Pixel size | 2.0x2.0μm |
| Scan mode | Progressive |
| Data transfer | Wi-Fi (2.4 & 5 GHz), Ethernet |
| Max. frames per second (fps) | 1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength) |
| Exposure time | 0.03 msec to 0.03 sec |
| Operating temperature | From 0 to +60 Degrees Celsius non condensing |
| Max. signal to noise ratio | 38.3dB |
| Dynamic range | 64.6dB |
| Sensitivity | 1.9V/Lux-sec (550nm) |
| Buttons | On/Off |
| Support device | Universal Web browser (HTML5) |
| Supported OS | Windows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higher |
| Minimum computer requirements | 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB |
| Lens mount | C-Mount |
| Screen | 10" IPS Tablet |
| Software | MotiConnect App for iOS and Android (pre-installed) |
| Functions | Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system. |
| Power supply | 12V (External Power supply) |
| Tablet bracket holder | For tablets from 7” to 10” |
| Package includes | USB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE) |
| Tablet Specifications | |
| Size (mm) | 218x136x10mm |
| System | Android 10 |
| Pre-installed App | MotiConnect |
| Language | Multi-Language |
| CPU | 2.0GHz 8-core |
| RAM | 6GB DDR3 |
| NAND Flash | 128GB |
| Display | 10" (IPS) 16:10 Ratio |
| Display resolutions | 1920x1200 |
| Touch Panel | Capacitive Multi-Touch Screen |
| GPU | MALI-G720 MP3 |
| Ports | MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging) |
| Speaker | 8Ω/0.7Wx2 |
| Mic | MIC (Internal) |
| Wi-Fi | 802.11b/g/n |
| Bluetooth | 4.0 |
| Camera | Front (5M Pixels) + Rear (8M Pixels) |
| Support display format | MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM |
| Support audio format | MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV |
| Picture format | JPG, JPEG, GIF, BMP, PNG |
| Battery | 3.7V/3500mAh Rechargeable Battery |
| Power supply tablet | Input：AC100-240V. 50-60HZ - Output: DC5V 2A (Support USB port charging） |
| Certifications | FCC CE |
| Color | White |
