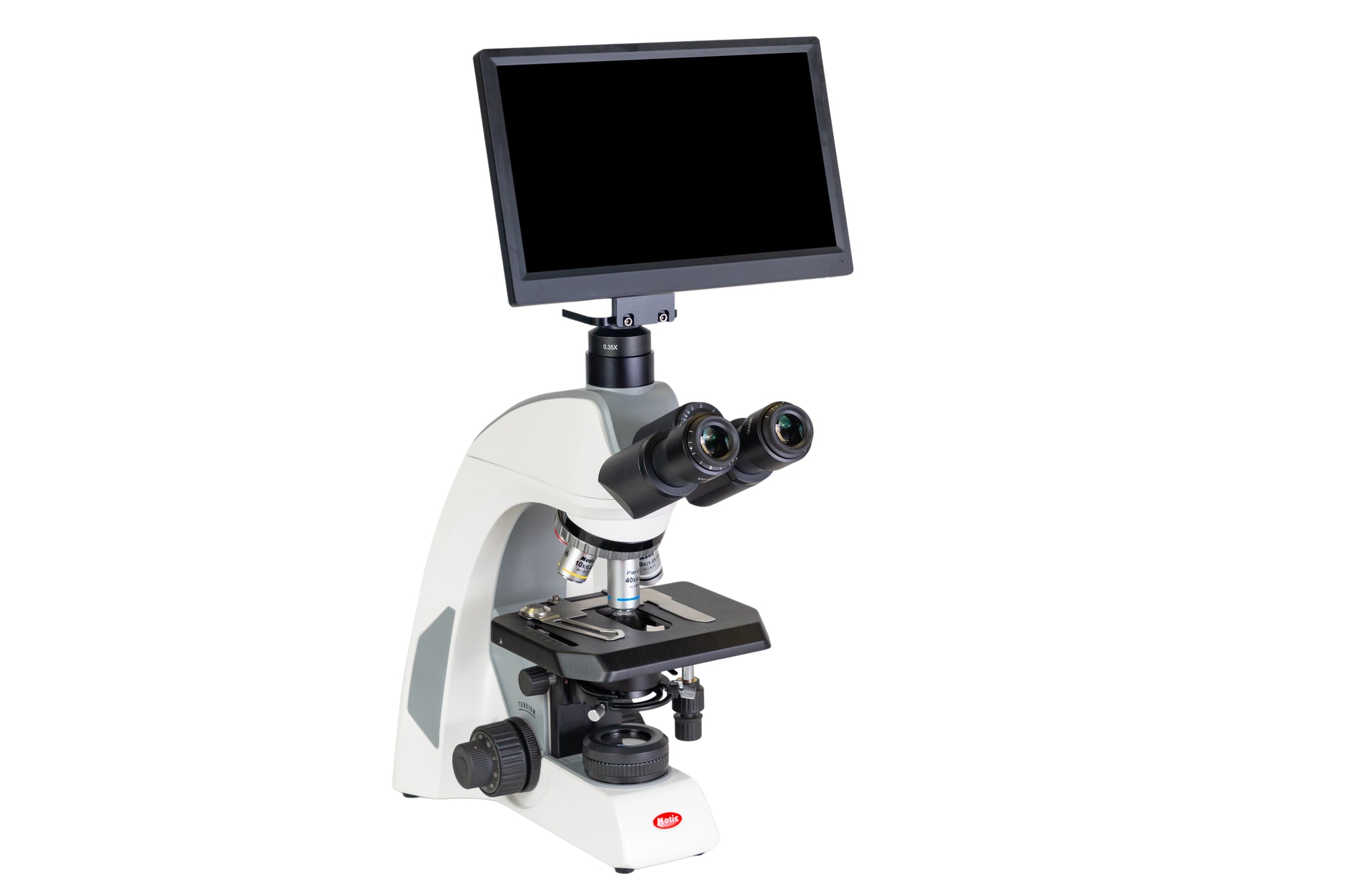

Panthera C2 (Trinocular) + Moticam BMH4000X Bundle
$4,363
This digital camera bundle comes with:
- Panthera C2 Trinocular
- Moticam BMH4000X
- Compatible C-mount adapter
If it is about stained sections with cover glass protection, about native smears, fine needle biopsies, blood smears which wanted to be treated with or without cover glass: Panthera C2 with its selection of specified optics is your solution. The new Ultra Contrast (UC) objectives with additional glass elements to reach a 22mm Field of View, working perfectly together with neutral eyepieces (thanks to CCIS© a fully corrected intermediate image for digital access is granted) guarantee best performance in terms of color fidelity and contrast. Microscope hardware, illumination, handling: Simply convincing.
- Panthera C2 Specifications
- Moticam BMH4000X Specifications
- Downloads
- Videos
- Warranty
- Return Policy
- Reviews
| Model | Panthera C2 Trinocular |
| Optical system | Color Corrected Infinity Optical System (CCIS®) |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Inclination | 25° inclined, 360° swiveling |
| Trinocular light split | Fixed 50:50 |
| Interpupillary distance | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield UC-WF10X/20mm with diopter adjustment |
| Nosepiece | Reversed quintuple, coded |
| Objective classification | CCIS® UC Plan Achromatic (Pb free) |
| Objectives | 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size | 185x145mm |
| Travel range X&Y | 75x50mm |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2μm |
| Focusing stroke | 25mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator with fixing cap |
| Transmitted illumination | Koehler LED 3W & Quartz halogen 6V/30W with intensity control |
| Illumination interchangeability | Halogen/LED and LED color temperature interchangeability |
| Illumination features | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator |
| Transformer | Internal |
| Power supply | 110-240V (CE) |
| Other features | USB 2.0 for external camera power |
| Accessories included | Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module |
| Dimensions LxWxH | 282x210x396mm |
| Net weight | 8.4kg |
| Model | Moticam BMH4000X |
| Sensor size | 1/2.8" |
| Image output | HDMI, UXC, WIFI 5 |
| Capture resolution | 8MP |
| Pixel Size | 1.45 x 1.45m |
| Scan mode | Progressive |
| Shutter mode | Rolling Shutter |
| Lens mount | C-Mount |
| Max. frames per second (fps*) |
HDMI: (4K) 30fps @ 3840x2160 WIFI: 25fps @ 1920x1080, 12fps @ 3840x2160 USB: (4K) 30fps @ 3840x2160 |
| Image capture | JPEG/TIFF format with 4K (3840x2160) resolution in SD card |
| Video record | 4K (30fps @ 3840x2160) H264/H265 encoded MP4 file in SD card |
| Screen | LCD 11.6" native 1920x1080 pixels full HD screen |
| Software | Motic Images Plus 3.1 for Windows/Mac OS |
|
On-Board Software (Camera connected through HDMI to a HD screen and through USB to a mouse) |
|
| Standard tools | Still image capture, Live image record, Zoom in & out, Magnifier, ROI, Mirror, Rotation, Split, Freeze, Cross line, Gallery |
| Image adjustments (AE/AWB) | Auto/manual exposure mode, Gain, Target brightness setting, Light frequency, Auto/manual white balance mode |
| Advanced settings | Saturation, Contrast, Gamma, Sharpness, Denoise, User settings, System's time setting, Language (English, Chinese and Japanese), Format SD card |
| *Frames per second under optimal illumination conditions. | |
Panthera Generation 2 Launch
Discover the 2nd Generation of PANTHERA. Developed for those with sophisticated quality thinking. The right choice is now much simpler to find in the jungle of performance awards and crowded market of solutions. New Panthera E2 and Panthera C2 microscopes...Lift-up your performance to a world-class level!
Panthera Compound Microscopes Series
Have an overview of the complete Panthera Series, our brand new upright microscopes range covering from the educational field, going through advanced models for clinics and labs and up to industrial and material sciences applications.
Panthera Microscope Series: Unleash your Potentials
The recent Panthera upright microscope Series is in constant evolution, ready to cover your demands and fit in every application field. A smart and versatile microscope line ready to optimize your daily workflow.
How to do the parfocality adjustment on an upright microscope
Wondering what a microscope's parfocality is and how to do it when using an upright microscope? In this video, we will explain it and show you by following some easy steps.
How to adjust the microscope illumination
If you are wondering how to get good, clear and crisp images from your microscope, the key point is ensuring that your sample is correctly illuminated. In this video, we will show you in just a few steps, how to adjust the illumination of your microscope to get the best image out of your device.
How to avoid repairs in your microscope
Do you want to know how to keep your microscope in its best condition? In this video, we will give you some basic tricks to carry out; before, during, and after its use and thus avoid possible repairs.
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
Panthera C2 Specifications
| Model | Panthera C2 Trinocular |
| Optical system | Color Corrected Infinity Optical System (CCIS®) |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Inclination | 25° inclined, 360° swiveling |
| Trinocular light split | Fixed 50:50 |
| Interpupillary distance | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield UC-WF10X/20mm with diopter adjustment |
| Nosepiece | Reversed quintuple, coded |
| Objective classification | CCIS® UC Plan Achromatic (Pb free) |
| Objectives | 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size | 185x145mm |
| Travel range X&Y | 75x50mm |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2μm |
| Focusing stroke | 25mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator with fixing cap |
| Transmitted illumination | Koehler LED 3W & Quartz halogen 6V/30W with intensity control |
| Illumination interchangeability | Halogen/LED and LED color temperature interchangeability |
| Illumination features | Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator |
| Transformer | Internal |
| Power supply | 110-240V (CE) |
| Other features | USB 2.0 for external camera power |
| Accessories included | Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module |
| Dimensions LxWxH | 282x210x396mm |
| Net weight | 8.4kg |
Moticam BMH4000X Specifications
| Model | Moticam BMH4000X |
| Sensor size | 1/2.8" |
| Image output | HDMI, UXC, WIFI 5 |
| Capture resolution | 8MP |
| Pixel Size | 1.45 x 1.45m |
| Scan mode | Progressive |
| Shutter mode | Rolling Shutter |
| Lens mount | C-Mount |
| Max. frames per second (fps*) |
HDMI: (4K) 30fps @ 3840x2160 WIFI: 25fps @ 1920x1080, 12fps @ 3840x2160 USB: (4K) 30fps @ 3840x2160 |
| Image capture | JPEG/TIFF format with 4K (3840x2160) resolution in SD card |
| Video record | 4K (30fps @ 3840x2160) H264/H265 encoded MP4 file in SD card |
| Screen | LCD 11.6" native 1920x1080 pixels full HD screen |
| Software | Motic Images Plus 3.1 for Windows/Mac OS |
|
On-Board Software (Camera connected through HDMI to a HD screen and through USB to a mouse) |
|
| Standard tools | Still image capture, Live image record, Zoom in & out, Magnifier, ROI, Mirror, Rotation, Split, Freeze, Cross line, Gallery |
| Image adjustments (AE/AWB) | Auto/manual exposure mode, Gain, Target brightness setting, Light frequency, Auto/manual white balance mode |
| Advanced settings | Saturation, Contrast, Gamma, Sharpness, Denoise, User settings, System's time setting, Language (English, Chinese and Japanese), Format SD card |
| *Frames per second under optimal illumination conditions. | |
