Moticam BTX8 Wifi Tablet Camera - Motic Microscopes
Moticam BTI
Moticam BTI
Moticam BTI

Moticam BTI

Moticam BTI 8

$750


The Moticam BTI combines a space-saving camera hardware with new Wi-Fi technology.

The 4MP Wi-Fi camera comes together with an Android tablet (up to 10") to deliver fast live images (up to 30 fps) on any microscope with a vertical photo tube.

This setup is perfect for the immediate presentation of image results to a greater public in your lab. Detaching the tablet for an even more flexible application is possible thanks to the Wi-Fi data transfer.

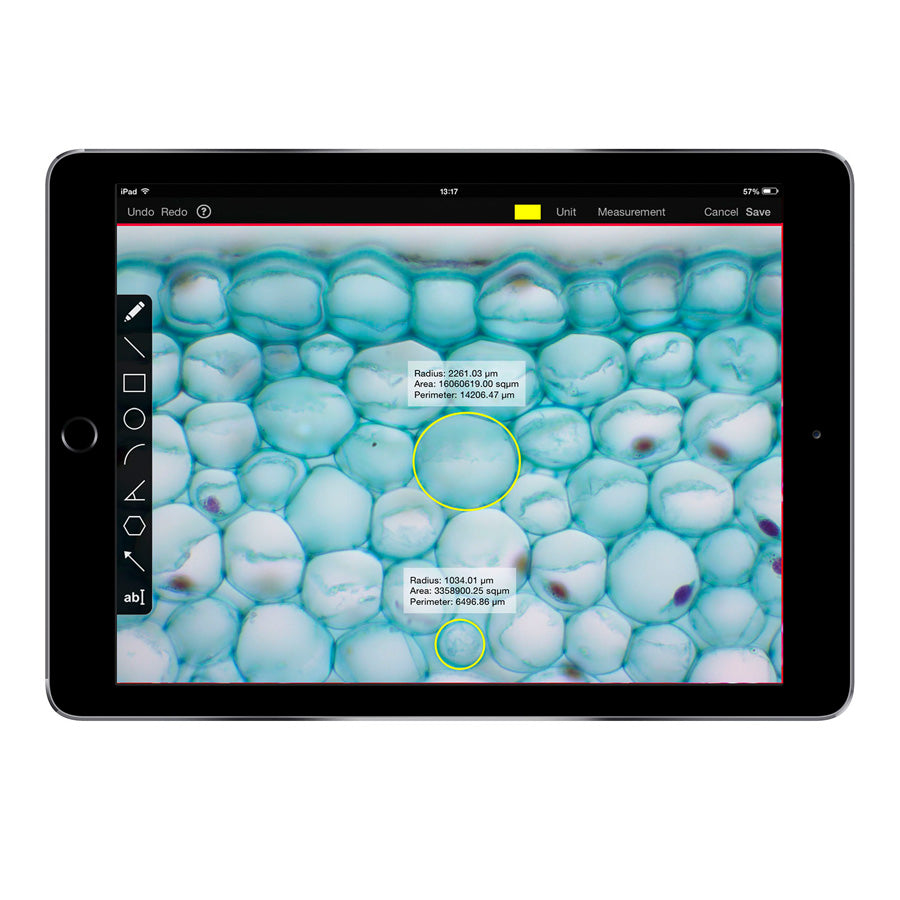

Use the pre-installed MotiConnect App and get ready to capture, edit and share your microscope images from the tablet in a few taps.

    Moticam BTI - Versatile Tablet Microscopy Solution

    The Moticam BTI combines a space-saving camera hardware with new Wi-Fi technology. The 4MP Wi-Fi camera comes together with an 8”/10" Android tablet to deliver fast live images (up to 30 fps) on any microscope with a vertical photo tube. This setup is perfect for the immediate presentation of image results to a greater public in your lab. Detaching the tablet for an even more flexible application is possible thanks to the Wi-Fi data transfer. Use the pre-installed MotiConnect App and get ready to capture, edit and share your microscope images from the tablet in a few taps.

    Model Moticam BTI 8 Moticam BTI 10
    Camera Specifications
    Sensor type CMOS CMOS
    Sensor size 1/3" 1/3"
    Live resolution 1920x1080, 1280x720 (display resolution) 1920x1080, 1280x720 (display resolution)
    Image capture resolution 4.0MP 4.0MP
    Video capture resolution 720P (HD) 720P (HD)
    Data transfer Wi-Fi (2.4 or 5 GHz) and Ethernet (RJ45) Wi-Fi (2.4 or 5 GHz) and Ethernet (RJ45)
    Pixel size 2.0μmx2.0μm 2.0μmx2.0μm
    Lens mount C-Mount C-Mount
    Tablet bracket holder For tablets from 7" to 10" For tablets from 7" to 10"
    Tablet Specifications
    Size 209x126x9.9mm 218x136x910mm
    System Android 5.1 Android 10
    Pre-installed App MotiConnect MotiConnect
    Language Multi-Language Multi-Language
    CPU  1.3GHz Quad core 2.0GHz 8-core
    RAM  1GB DDR3 6GB DDR3
    NAND FLASH 8GB 128GB
    Display 8" (IPS) 16:10 Ratio 1920x1200
    Ports MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging) MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)
    Support display format MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
    Support audio format MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
    Picture format JPEG, GIF, BMP, PNG JPEG, GIF, BMP, PNG
    Camera Front (VGA) + Rear (2M Pixels) Front (5M Pixels) + Rear (8M Pixels)
    Package includes USB Cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE) USB Cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)

    How to connect your Moticam onto the trinocular tube

    Learn how to connect your Moticam onto the trinocular tube easily.

    New Motic Images Plus 3.0 Launch

    A small taste of the Motic Images Plus 3.0 software.

    Motic Images Plus 3.0 & 3.1 - First Steps tutorial

    Learn how to make your first steps with Motic Images Plus 3.0 software. From software installation up to making professional measurements, we guide you step by step through getting a great live image, applying image adjustments to see the microscope's image as wished or the most closely to eyepiece observation, and capturing an image or video. All you might need to start with confidence.

    Motic Images Plus 3.0 & 3.1 - Calibration tutorial

    Calibration simply explained: Learn how to calibrate Motic Image Plus 3.0 software, a must in professional environments where exact scale and measurements are a daily need. Easy to follow step-by-step explanation with tips & tricks to perform it accurately.
