Moticam 4000X
$1,295
Discover our newest Moticam 4000X, designed for efficiency and to output fast live images at 4K (3840 x 2160 px).
Connect it through the HDMI port to a screen and display your live image. With the use of the on-board software and a USB mouse, you can make live measurements, notes, image adjustments and more, directly on the HDMI screen, without the need for a computer.
Thanks to its integrated SD card slot and USB ports, saving images won't require a computer, making it easy to save and organize your images and videos. You can also connect your camera through USB to a Windows, or Mac computer, and even display your samples simultaneously.
- Descriptions
- Specifications
- Downloads
- Videos
- Warranty
- Return Policy
- Reviews

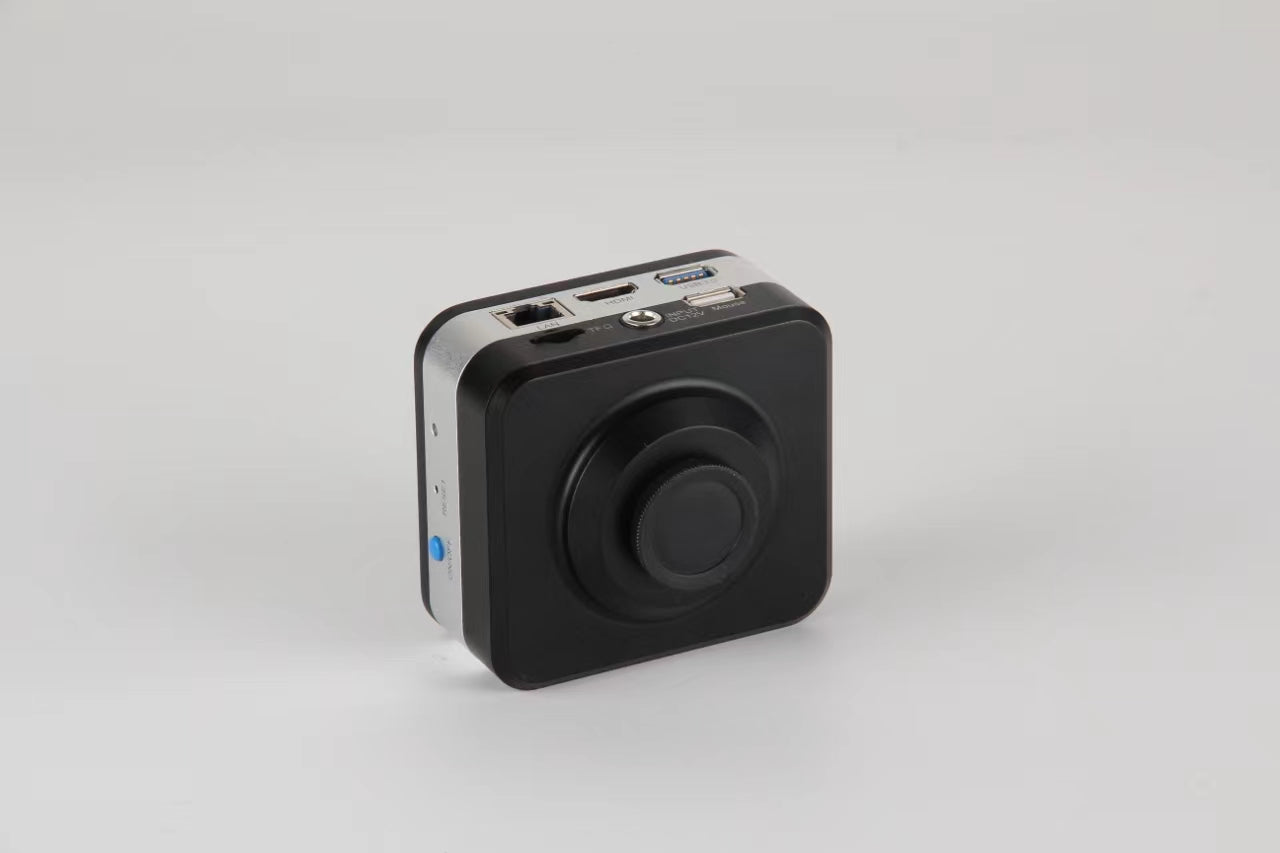

Moticam 4000X - True 4K Imaging
The Full HD affordable multi-tasking microscopy camera. The Moticam 4000X is dedicated to documentation of microscopic results with a clear focus on maximum colour fidelity and fast live image.
It does not require a computer for standard operation, as it comes with softwares that will allow you to use it by simply connecting it to a screen through its HDMI port, and with a mouse connected to the USB port of the camera.

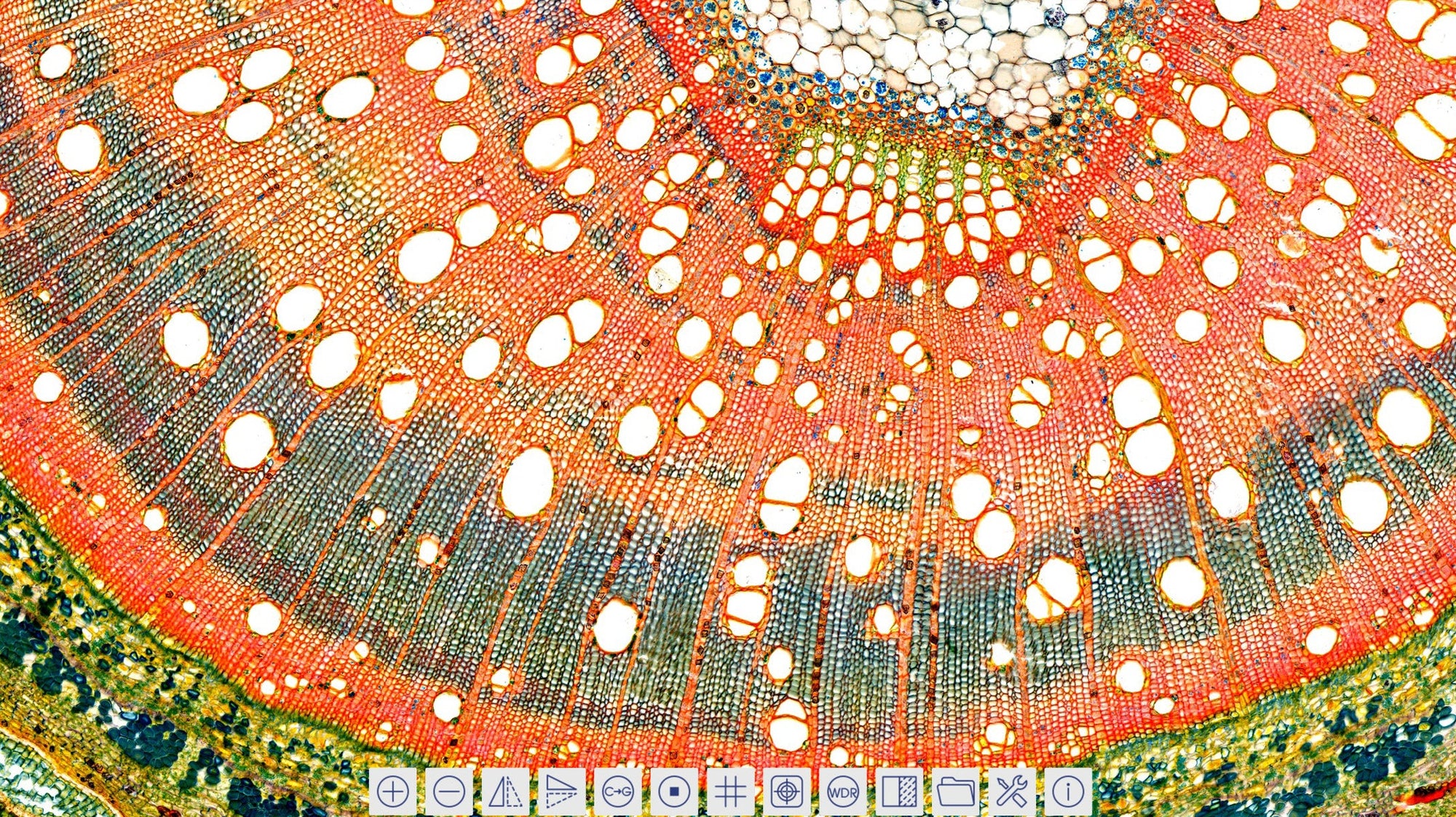

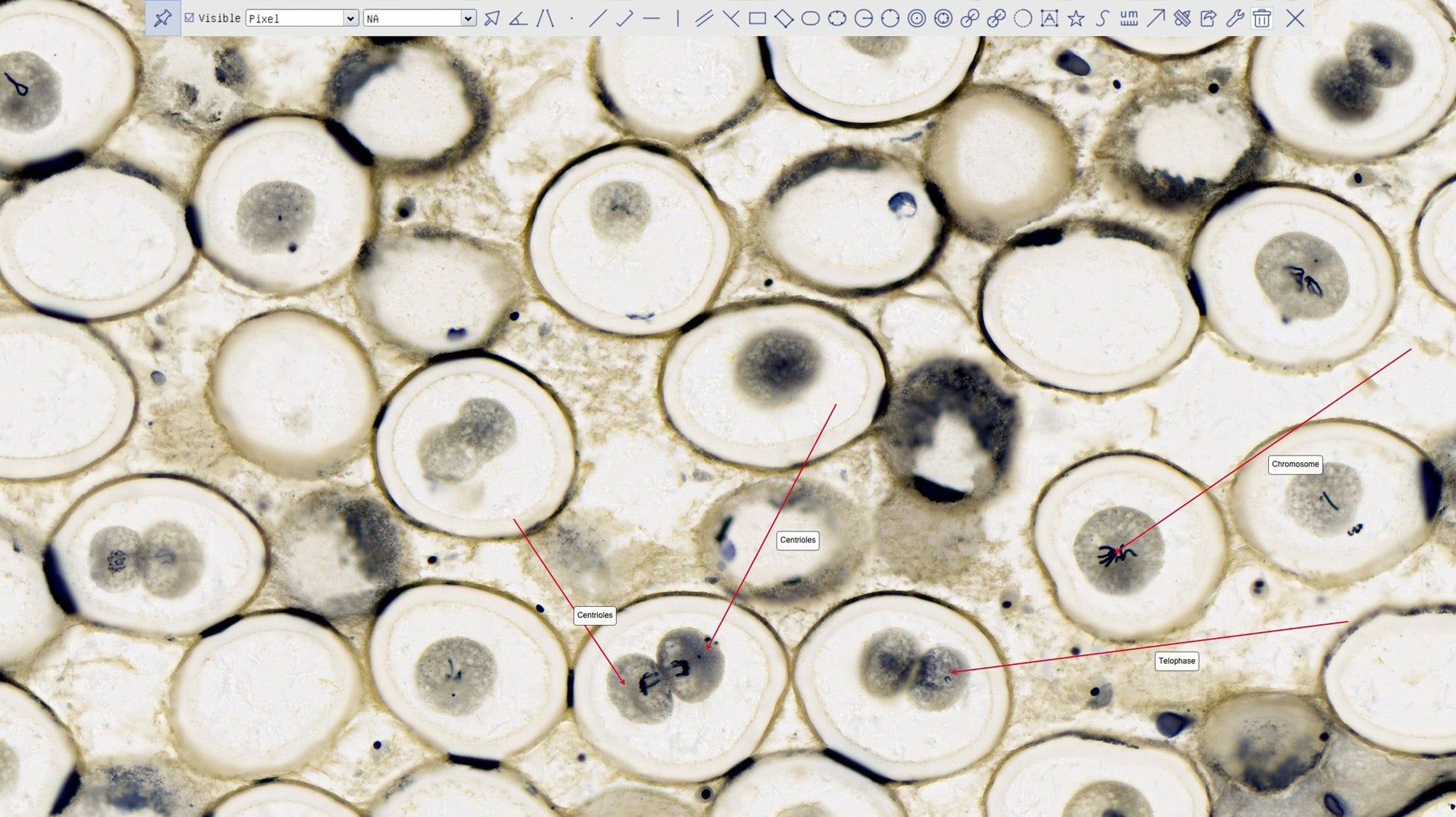

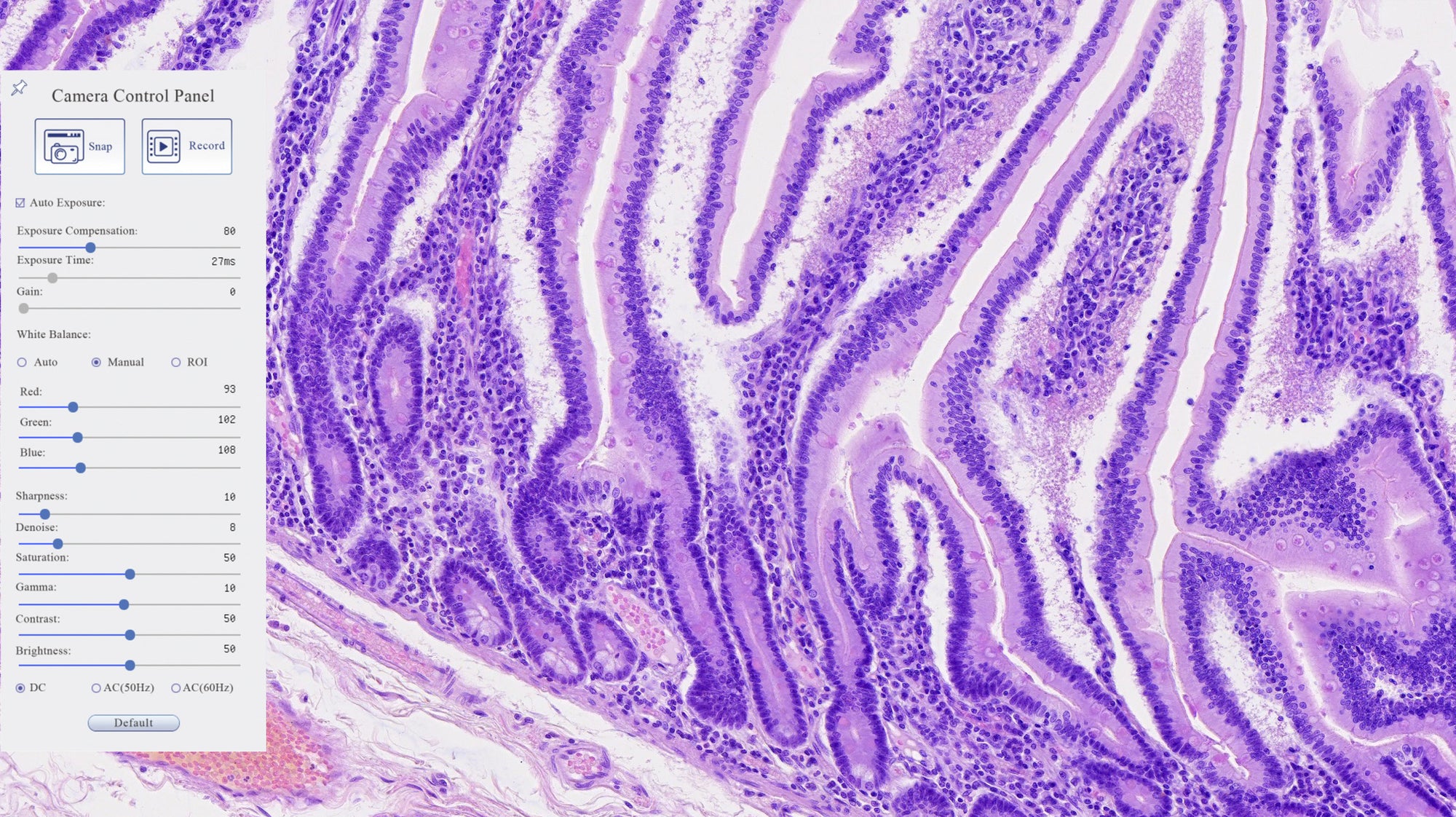

| Software Images |
 |
 |
 |
| Model | Moticam 4000X |
| Sensor type | CMOS |
| Sensor size | 1/2.8" |
| Imaging area | 6.4mm (diagonal) |
| Capture resolution | 8MP (3840x2160 pixels) |
| Image capture resolution (on SD-card) | 8MP (3840x2160 pixels) |
| Video capture resolution (on SD-card) | 1080P (1920x1080 pixels) |
| Live display mode through USB | 4K (3840x2160 pixels) |
| Live display mode through Wi-Fi | 4K (3840x2160 pixels) |
| Live display mode through Ethernet | 4K (3840x2160 pixels) |
| Live display mode through HDMI | 4K (3840x2160 pixels) |
| Pixel Size | 1.45 x 1.45μm |
| Scan mode | Progressive |
| Shutter mode | Rolling Shutter |
| Data transfer | HDMI, USB, Wi-Fi, Ethernet, Micro SD-card |
| Max. frames per second (fps) | HDMI: 4K (3840x2160) @30fps USB 3.0: 1920x1080 @30fps, 3840x2160 @25fps Wi-Fi: 1920x1080 @25fps, 3840x2160 @12fps |
| Exposure time | 0.03ms ~ 1000ms |
| Operating temperature | From -10 to +50 degrees Celsius non condensing |
| Sensitivity | 300mV with 1/30s |
| Slot | Micro SD-Card |
| Buttons | On/Off |
| Support device | TWAIN, SDK and Direct Show Driver |
| Minimum computer requirements | Core2, 2.8GHz, RAM memory 8GB |
| Lens mount | C-Mount |
| Focusable lens | 12mm |
| Software | On-board Software, Motic Images Plus 3.1 for Windows 10 and MAC OSX or higher and MotiConnect App for iOS and Android |
| Functions | Including exposure, gain, white balance, color adjustment, sharpness and denoising control, zoom, mirror, comparison, freeze, measure, cross, browse function |
| Power supply | 12V (External power supply) |
| Package includes | CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB 3.0 cable, Motic Images Plus 3.1 |
| Notes | USB port for connecting a mouse to enable software control Transport and storage case |
| *Frames per second under optimal lighting conditions and in compliance with computer technical requirements. | |
How to connect your Moticam onto the trinocular tube
Learn how to connect your Moticam onto the trinocular tube easily.
New Motic Images Plus 3.0 Launch
A small taste of the Motic Images Plus 3.0 software.
Motic Images Plus 3.0 & 3.1 - First Steps tutorial
Learn how to make your first steps with Motic Images Plus 3.0 software. From software installation up to making professional measurements, we guide you step by step through getting a great live image, applying image adjustments to see the microscope's image as wished or the most closely to eyepiece observation, and capturing an image or video. All you might need to start with confidence.
Motic Images Plus 3.0 & 3.1 - Calibration tutorial
Calibration simply explained: Learn how to calibrate Motic Image Plus 3.0 software, a must in professional environments where exact scale and measurements are a daily need. Easy to follow step-by-step explanation with tips & tricks to perform it accurately.
MotiConnect App for computers - First steps
Here's how to get started with our free MotiConnect App for computers. You'll learn how to download and install the app, select your device for the first time, and a general overview of the main tools and features of this fantastic microscopy app.
MotiConnect App - Calibration & Measurements
Wondering how to calibrate and take measurements on the MotiConnect App? Find out how easy it is to start with your investigation by watching this video, and discover how to make annotations and measurements on the great free MotiConnect microscopy App.
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
Customer Reviews
Descriptions
Moticam 4000X - True 4K Imaging
The Full HD affordable multi-tasking microscopy camera. The Moticam 4000X is dedicated to documentation of microscopic results with a clear focus on maximum colour fidelity and fast live image.
It does not require a computer for standard operation, as it comes with softwares that will allow you to use it by simply connecting it to a screen through its HDMI port, and with a mouse connected to the USB port of the camera.
| Software Images |
|
|
|
Specifications
| Model | Moticam 4000X |
| Sensor type | CMOS |
| Sensor size | 1/2.8" |
| Imaging area | 6.4mm (diagonal) |
| Capture resolution | 8MP (3840x2160 pixels) |
| Image capture resolution (on SD-card) | 8MP (3840x2160 pixels) |
| Video capture resolution (on SD-card) | 1080P (1920x1080 pixels) |
| Live display mode through USB | 4K (3840x2160 pixels) |
| Live display mode through Wi-Fi | 4K (3840x2160 pixels) |
| Live display mode through Ethernet | 4K (3840x2160 pixels) |
| Live display mode through HDMI | 4K (3840x2160 pixels) |
| Pixel Size | 1.45 x 1.45μm |
| Scan mode | Progressive |
| Shutter mode | Rolling Shutter |
| Data transfer | HDMI, USB, Wi-Fi, Ethernet, Micro SD-card |
| Max. frames per second (fps) | HDMI: 4K (3840x2160) @30fps USB 3.0: 1920x1080 @30fps, 3840x2160 @25fps Wi-Fi: 1920x1080 @25fps, 3840x2160 @12fps |
| Exposure time | 0.03ms ~ 1000ms |
| Operating temperature | From -10 to +50 degrees Celsius non condensing |
| Sensitivity | 300mV with 1/30s |
| Slot | Micro SD-Card |
| Buttons | On/Off |
| Support device | TWAIN, SDK and Direct Show Driver |
| Minimum computer requirements | Core2, 2.8GHz, RAM memory 8GB |
| Lens mount | C-Mount |
| Focusable lens | 12mm |
| Software | On-board Software, Motic Images Plus 3.1 for Windows 10 and MAC OSX or higher and MotiConnect App for iOS and Android |
| Functions | Including exposure, gain, white balance, color adjustment, sharpness and denoising control, zoom, mirror, comparison, freeze, measure, cross, browse function |
| Power supply | 12V (External power supply) |
| Package includes | CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB 3.0 cable, Motic Images Plus 3.1 |
| Notes | USB port for connecting a mouse to enable software control Transport and storage case |
| *Frames per second under optimal lighting conditions and in compliance with computer technical requirements. | |
Downloads
Videos
How to connect your Moticam onto the trinocular tube
Learn how to connect your Moticam onto the trinocular tube easily.
New Motic Images Plus 3.0 Launch
A small taste of the Motic Images Plus 3.0 software.
Motic Images Plus 3.0 & 3.1 - First Steps tutorial
Learn how to make your first steps with Motic Images Plus 3.0 software. From software installation up to making professional measurements, we guide you step by step through getting a great live image, applying image adjustments to see the microscope's image as wished or the most closely to eyepiece observation, and capturing an image or video. All you might need to start with confidence.
Motic Images Plus 3.0 & 3.1 - Calibration tutorial
Calibration simply explained: Learn how to calibrate Motic Image Plus 3.0 software, a must in professional environments where exact scale and measurements are a daily need. Easy to follow step-by-step explanation with tips & tricks to perform it accurately.
MotiConnect App for computers - First steps
Here's how to get started with our free MotiConnect App for computers. You'll learn how to download and install the app, select your device for the first time, and a general overview of the main tools and features of this fantastic microscopy app.
MotiConnect App - Calibration & Measurements
Wondering how to calibrate and take measurements on the MotiConnect App? Find out how easy it is to start with your investigation by watching this video, and discover how to make annotations and measurements on the great free MotiConnect microscopy App.
Warranty
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
Return Policy
All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
