LUMOS LED High Powered Fluorescence Light Source
$6,468

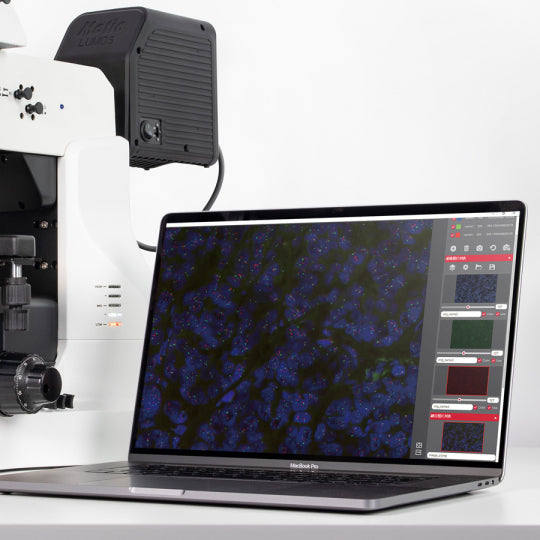

Do more with your Motic microscope setup with our cutting-edge fluorescence solution: LUMOS. With this high-performance plug and play illuminator device, you will obtain stunning multi-channel images that can be seamlessly overlaid using our intuitive imaging software. Featuring UV, blue and green colour LED channels, with ultra-accurate wavelengths and contrast provided by its black background, this accessory yields sharp images without the need for constant bulb changes or an alignment.
LUMOS FL: High-Powered UV-BG Fluorescence LED Lamp
- Features apochromatic design
- Compared to the lifespan of only 200 hours and the high cost of mercury-arc lamps, the LUMOS FL provides over 20,000 hours of use
- No light toxicity like traditional mercury-arc lamps which can damage samples with infrared light heat toxicity
- Instant On/Off: Unlike traditional mercury-arc lamps which take up to 20 minutes to reach optimal brightness levels when turned on, the LUMOS FL is ready for use at the flip of a switch
- Dose not pose toxic gas danger to users
- Avoids stray light interference during observation, helping to avoid errors in user interpretation of images
- Individually controls each LED channel and eliminates need for multiple filters therefore reducing filter cube expense
- Features a broad spectrum spread which can satisfy multiple user applications
| Filters | DAPI | FITC | TRITC | RGB Three channels integration |
 |
 |
 |
 |
| Model | LUMOS FL LED high powered light source |
| Illuminator source | High power Color LED (UV, B, G) x3 |
| Channel | UV (peak @ 395nm), B (peak @ 460nm), G (peak @ 540nm) |
| Illuminator input voltage | 100-240V |
| Illuminator output voltage | 15V |
| Output power | UV (760mW), Blue (610mW), Green (530mW) |
| Estimated life span | 20.000h or 8 years (whichever comes first) |
| Speed of LED switching | Milisecond level |
| Environmental operating temperature | 5 to 40°C |
| Environmental operating pressure | 75 to 106KPa |
| Control pad connection to system | Wireless |
| Connection to computer or/and microscope | USB interface (with PA53 BIO Series) |
| Power requirements | 130W (15V/8.66A) DC power supply included |
| Dimensions LxWxH | 108x200x162mm |
| Weight Net | 2.7Kg |
| Valid for | BA410E, PA53BIO, AE31E |
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
