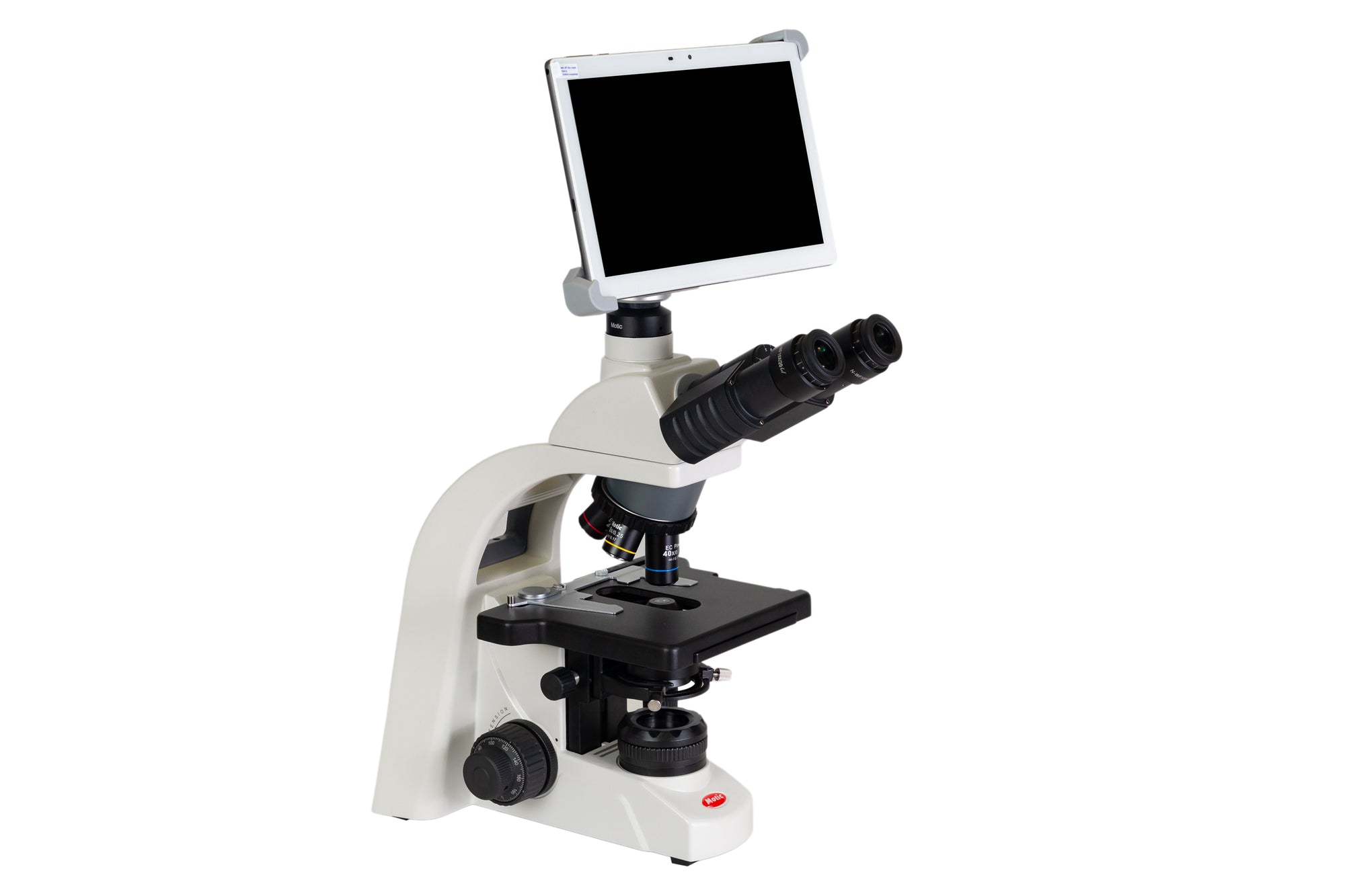

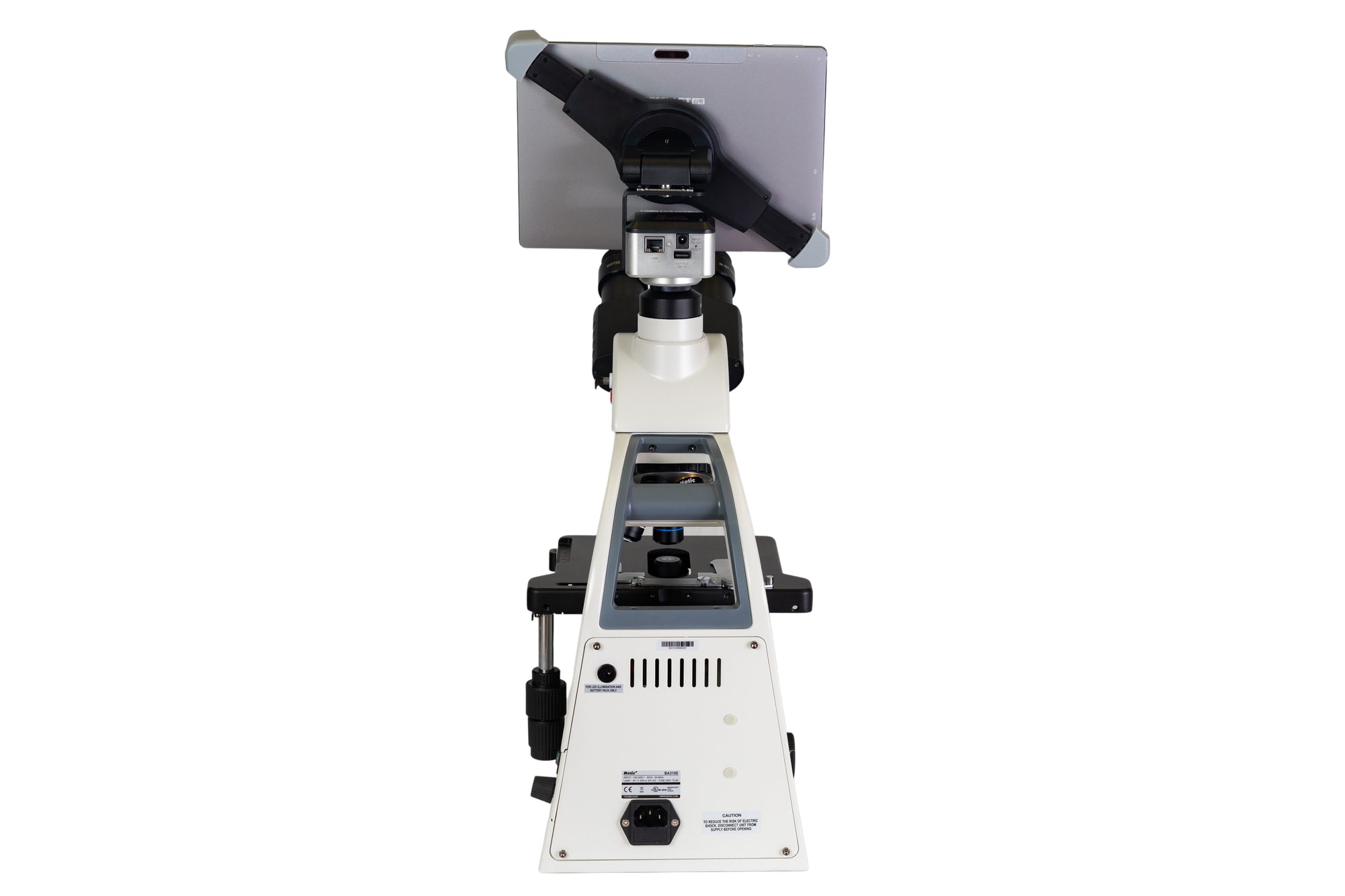

BA310E LED (Trinocular) + Moticam BTI10 Bundle
$3,416
This digital camera bundle comes with:
- BA310E LED Trinocular
- Moticam BTI10
- Compatible C-mount adapter
The BA310E model introduces superior improvements both in optical and mechanical performance. The ELITE model's addition of a new rackless stage concept without prominent gear rack allows an even more convenient use of the x/y movement. For full freedom of illumination options, the new model has a complete and easy interchangeability of its 6V/30W Halogen bulb with LED modules.
- BA310E Specifications
- Moticam BTI10 Specifications
- Downloads
- Warranty
- Return Policy
- Reviews
| Model | BA310E Trinocular |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Darkfield | Optional slider/turret |
| Diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment |
| Filter holder | On top of the illuminator with fixing cap |
| Fine focus precision | 2µm |
| Fluorescence | Optional LED |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 20mm |
| Illumination interchangeability | Quartz halogen 6V/30W or LED 3W |
| Inclination | 30° inclined, 360° rotating |
| Interpupillary distance | 48-75mm |
| Nosepiece | Reversed quintuple |
| Objective classification | CCIS® EC Plan Achromatic, DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) |
| Phase contrast | Optional slider/turret |
| Polarization | Optional add-on |
| Stage | Mechanical stage with built-in low position rackless coaxial stage control with tension adjustment and sample holder |
| Stage size | 180x170mm |
| Stand type | Upright |
| Standard contrast technique | Brightfield |
| Transmitted illumination | Koehler Quartz halogen 6V/30W with intensity control |
| Travel range X&Y | 80x55mm |
| Trinocular light split | 100:0/20:80 or 100:0/0:100 |
| Upper limit stop | Upper limit stop preset but adjustable |
| Transformer | Internal |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw |
| Dimensions LxWxH | 400x220x400mm |
| Weight Net | 8.6kg |
| Model | Moticam BTI10 |
|---|---|
| Camera Specifications | |
| Sensor Type | CMOS |
| Sensor Size | 1/3" |
| Imaging Area | 5.44x3.07mm |
| Capture Resolution Info | 4MP (2592x1520 pixels) |
| Live display mode through Wi-Fi | 1280x720, 1920x1080 pixels (Full HD) |
| Live display mode through Ethernet | 1280x720, 1920x1080 pixels (Full HD) |
| Pixel size | 2.0x2.0μm |
| Scan mode | Progressive |
| Data transfer | Wi-Fi (2.4 & 5 GHz), Ethernet |
| Max. frames per second (fps) | 1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength) |
| Exposure time | 0.03 msec to 0.03 sec |
| Operating temperature | From 0 to +60 Degrees Celsius non condensing |
| Max. signal to noise ratio | 38.3dB |
| Dynamic range | 64.6dB |
| Sensitivity | 1.9V/Lux-sec (550nm) |
| Buttons | On/Off |
| Support device | Universal Web browser (HTML5) |
| Supported OS | Windows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higher |
| Minimum computer requirements | 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB |
| Lens mount | C-Mount |
| Screen | 10" IPS Tablet |
| Software | MotiConnect App for iOS and Android (pre-installed) |
| Functions | Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system. |
| Power supply | 12V (External Power supply) |
| Tablet bracket holder | For tablets from 7” to 10” |
| Package includes | USB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE) |
| Tablet Specifications | |
| Size (mm) | 218x136x10mm |
| System | Android 10 |
| Pre-installed App | MotiConnect |
| Language | Multi-Language |
| CPU | 2.0GHz 8-core |
| RAM | 6GB DDR3 |
| NAND Flash | 128GB |
| Display | 10" (IPS) 16:10 Ratio |
| Display resolutions | 1920x1200 |
| Touch Panel | Capacitive Multi-Touch Screen |
| GPU | MALI-G720 MP3 |
| Ports | MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging) |
| Speaker | 8Ω/0.7Wx2 |
| Mic | MIC (Internal) |
| Wi-Fi | 802.11b/g/n |
| Bluetooth | 4.0 |
| Camera | Front (5M Pixels) + Rear (8M Pixels) |
| Support display format | MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM |
| Support audio format | MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV |
| Picture format | JPG, JPEG, GIF, BMP, PNG |
| Battery | 3.7V/3500mAh Rechargeable Battery |
| Power supply tablet | Input：AC100-240V. 50-60HZ - Output: DC5V 2A (Support USB port charging） |
| Certifications | FCC CE |
| Color | White |
At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.
All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.
