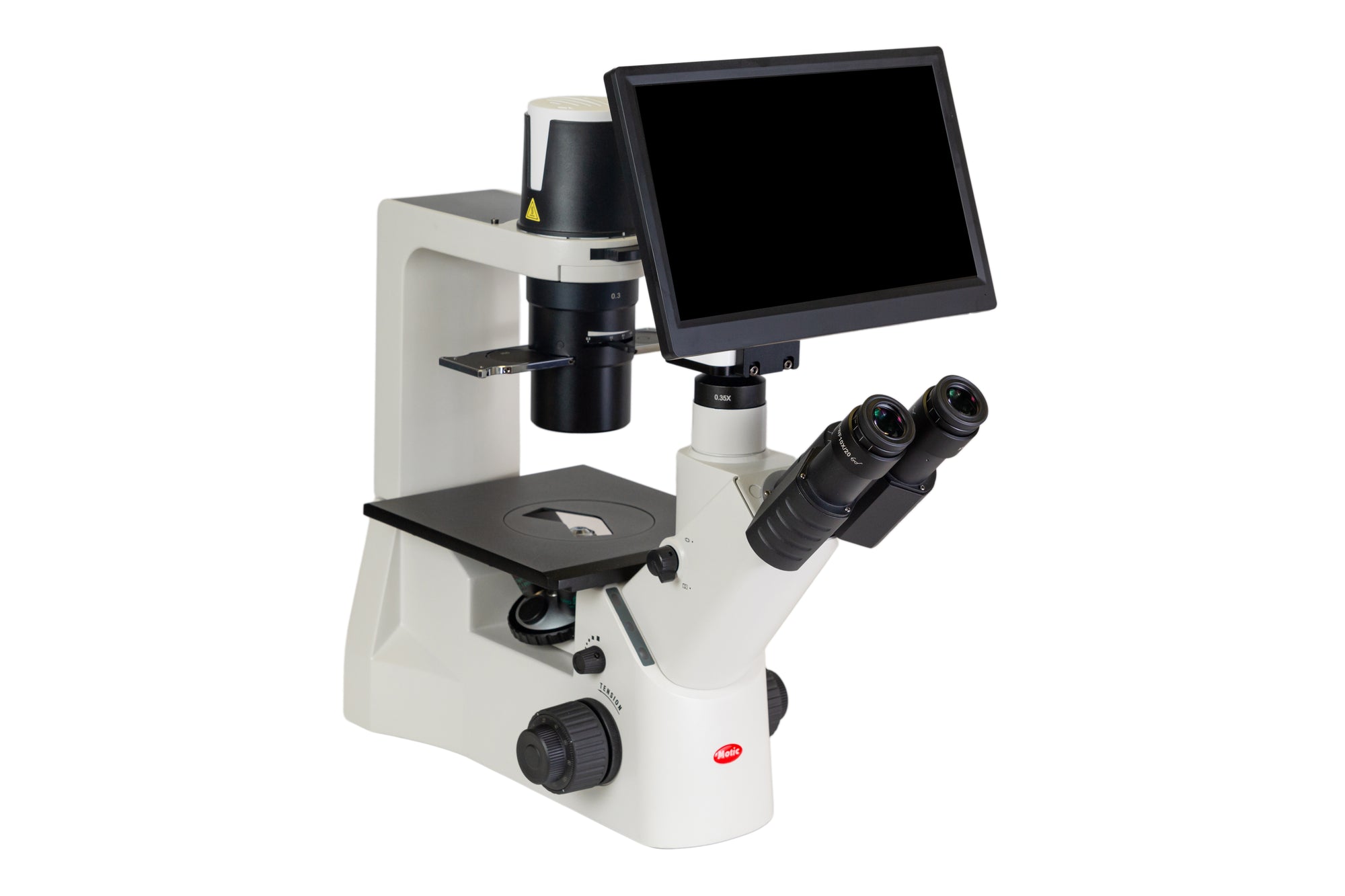

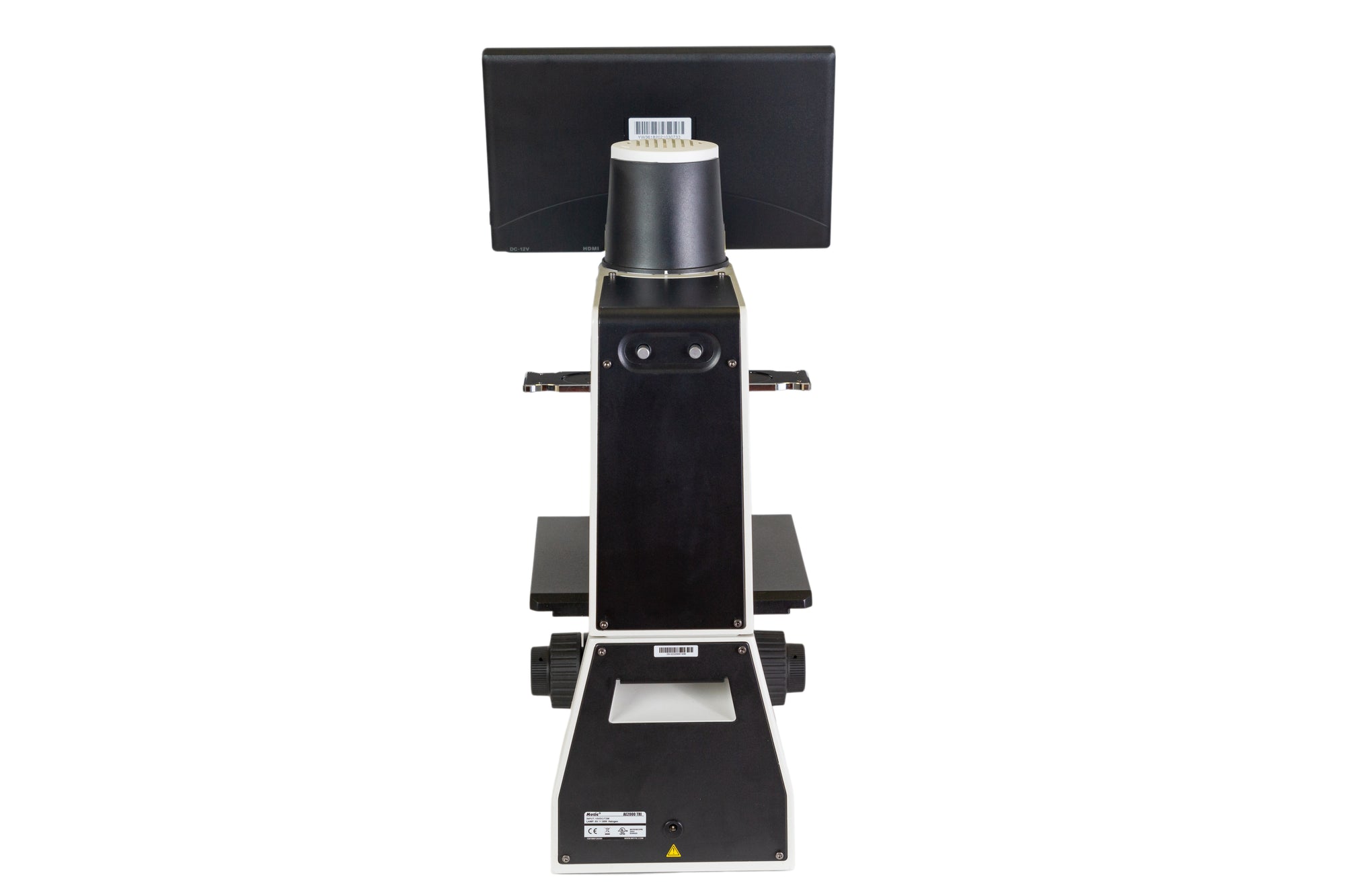

AE2000 (Trinocular) + Moticam BMH4000X Bundle
AE2000 (Trinocular) + Moticam BMH4000X Bundle
AE2000 (Trinocular) + Moticam BMH4000X Bundle
AE2000 (Trinocular) + Moticam BMH4000X Bundle
AE2000 (Trinocular) + Moticam BMH4000X Bundle
AE2000 (Trinocular) + Moticam BMH4000X Bundle

AE2000 (Trinocular) + Moticam BMH4000X Bundle

$5,472


This digital camera bundle comes with:

  • AE2000 Trinocular
  • Moticam BMH4000X
  • Compatible C-mount adapter

Designed for routine-lab or clinical work, as well as research requirements in Pharmaceutical Laboratories or Universities, the AE2000 is more than capable of fulfilling the expectations of its users. Superb optical quality can be expected from a brand new optical series of both bright field and phase contrast lenses, following Motic ́s proven successful CCIS® Infinity Optical System.


Model AE2000 Trinocular
Observation tube Trinocular head, Siedentopf type, 360° swiveling
Optical system Colour Corrected Infinity Optical System (CCIS®)
Condenser ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
Diaphragm Iris diaphragm
Diopter adjustment On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/20mm with diopter adjustment
Fine focus precision 2µm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Focusing stroke 8mm
Free working distance Working distance without condenser 184mm
Illumination features Auto on/off
Illumination interchangeability Quartz halogen 6V/30W or LED 3W
Inclination 45° inclined
Interpupillary distance 48-75mm
Nosepiece Left side facing quadruple
Objective classification CCIS® Plan Achromatic, DIN
Objective mounting thread W 4/5"x1/36" (RMS standard)
Objectives 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm),  [Optional] LWD PH20X/0.30 (WD 4.7mm),  [Optional] LWD 40X/0.50 (WD 3.0mm)
Phase contrast Slider
Stage Plain stage with metal and glass stage inserts
Stage size 200x239mm
Stand type Inverted
Standard contrast technique Brightfield, phase contrast
Transmitted illumination Quartz Halogen 6V/30W with intensity control
Transformer External
Power supply 100-240V (CE)
Accessories included Dust cover, power cord, blue, green and neutral density filters, phase ring Ph1, centering telescope, centering keys
Dimensions LxWxH 556x218x496mm
Weight Net 12.2kg


Model Moticam BMH4000X
Sensor size 1/2.8"
Image output HDMI, UXC, WIFI 5
Capture resolution  8MP
Pixel Size 1.45 x 1.45m
Scan mode Progressive
Shutter mode Rolling Shutter
Lens mount C-Mount
Max. frames per second (fps*) HDMI: (4K) 30fps @ 3840x2160
WIFI: 25fps @ 1920x1080, 12fps @ 3840x2160
USB: (4K) 30fps @ 3840x2160
Image capture JPEG/TIFF format with 4K (3840x2160) resolution in SD card
Video record 4K (30fps @ 3840x2160) H264/H265 encoded MP4 file in SD card
Screen LCD 11.6" native 1920x1080 pixels full HD screen
Software  Motic Images Plus 3.1 for Windows/Mac OS
On-Board Software
(Camera connected through HDMI to a HD screen and through USB to a mouse)
Standard tools Still image capture, Live image record, Zoom in & out, Magnifier, ROI, Mirror, Rotation, Split, Freeze, Cross line, Gallery
Image adjustments (AE/AWB) Auto/manual exposure mode, Gain, Target brightness setting, Light frequency, Auto/manual white balance mode
Advanced settings Saturation, Contrast, Gamma, Sharpness, Denoise, User settings, System's time setting, Language (English, Chinese and Japanese), Format SD card
*Frames per second under optimal illumination conditions.

Contrast Methods - Phase Contrast on AE2000 & AE31E

Discover how to perform the Phase contrast method on our AE2000 & AE31E inverted microscopes.

How to adjust the tension of the focusing system (ring). E.g. AE Series

Learn how easy it is to adjust the tension of the focusing system of your Motic microscope.

How to mount the reticle into the eyepiece

Learn how easy it is to mount a reticle into the eyepiece of your Motic microscope.

How to avoid repairs in your microscope

Do you want to know how to keep your microscope in its best condition? In this video, we will give you some basic tricks to carry out; before, during, and after its use and thus avoid possible repairs.

At Motic Instruments, we take pride in the quality of our products and our user experience. That's why we offer technical advice and full post-sale support to keep your Motic products in optimal condition and ensure your microscopy results are of the highest quality. All of our microscopes are covered by a 5 year warranty on mechanical components and 1 year warranty on electrical components.

All returns must be authorized by Motic Instruments in order to insure proper credit and must be requested within 15 days of purchase. All returns may be subject to a 25% restocking charge and any cancellations may be subject to a cancellation fee. For returns not due to Motic error, the customer is responsible for all transportation fees related to the returned product. Should a return be granted, the purchase amount less shipping & handling fee and other applicable fees (restocking charge) will be deducted.

AE2000 Specifications

Model AE2000 Trinocular
Observation tube Trinocular head, Siedentopf type, 360° swiveling
Optical system Colour Corrected Infinity Optical System (CCIS®)
Condenser ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder
Diaphragm Iris diaphragm
Diopter adjustment On both eyepieces, +/- 5 diopter
Eyepieces Widefield N-WF10X/20mm with diopter adjustment
Fine focus precision 2µm
Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
Focusing stroke 8mm
Free working distance Working distance without condenser 184mm
Illumination features Auto on/off
Illumination interchangeability Quartz halogen 6V/30W or LED 3W
Inclination 45° inclined
Interpupillary distance 48-75mm
Nosepiece Left side facing quadruple
Objective classification CCIS® Plan Achromatic, DIN
Objective mounting thread W 4/5"x1/36" (RMS standard)
Objectives 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm),  [Optional] LWD PH20X/0.30 (WD 4.7mm),  [Optional] LWD 40X/0.50 (WD 3.0mm)
Phase contrast Slider
Stage Plain stage with metal and glass stage inserts
Stage size 200x239mm
Stand type Inverted
Standard contrast technique Brightfield, phase contrast
Transmitted illumination Quartz Halogen 6V/30W with intensity control
Transformer External
Power supply 100-240V (CE)
Accessories included Dust cover, power cord, blue, green and neutral density filters, phase ring Ph1, centering telescope, centering keys
Dimensions LxWxH 556x218x496mm
Weight Net 12.2kg


Moticam BMH4000X Specifications

Model Moticam BMH4000X
Sensor size 1/2.8"
Image output HDMI, UXC, WIFI 5
Capture resolution  8MP
Pixel Size 1.45 x 1.45m
Scan mode Progressive
Shutter mode Rolling Shutter
Lens mount C-Mount
Max. frames per second (fps*) HDMI: (4K) 30fps @ 3840x2160
WIFI: 25fps @ 1920x1080, 12fps @ 3840x2160
USB: (4K) 30fps @ 3840x2160
Image capture JPEG/TIFF format with 4K (3840x2160) resolution in SD card
Video record 4K (30fps @ 3840x2160) H264/H265 encoded MP4 file in SD card
Screen LCD 11.6" native 1920x1080 pixels full HD screen
Software  Motic Images Plus 3.1 for Windows/Mac OS
On-Board Software
(Camera connected through HDMI to a HD screen and through USB to a mouse)
Standard tools Still image capture, Live image record, Zoom in & out, Magnifier, ROI, Mirror, Rotation, Split, Freeze, Cross line, Gallery
Image adjustments (AE/AWB) Auto/manual exposure mode, Gain, Target brightness setting, Light frequency, Auto/manual white balance mode
Advanced settings Saturation, Contrast, Gamma, Sharpness, Denoise, User settings, System's time setting, Language (English, Chinese and Japanese), Format SD card
*Frames per second under optimal illumination conditions.
